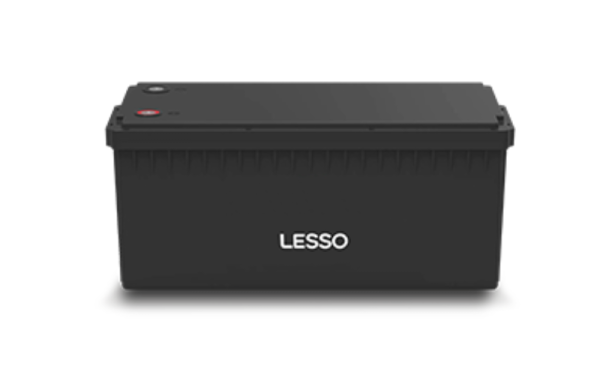

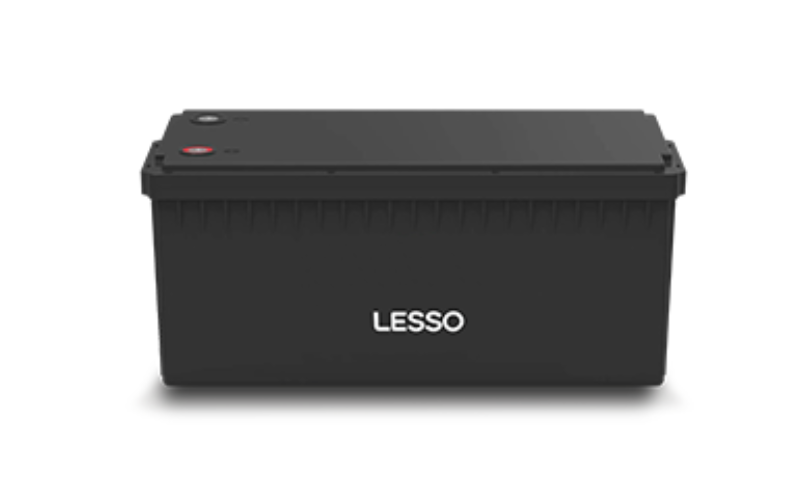

Battery Module LSMO 3kWh
Model: LSMO 25.6V120AH
Battery type: LiFePO4
Nominal energy: 3.072kWh
Nominal voltage: 25.6V
Nominal capacity: 120Ah
Nominal charging / Discharging current: 100A / 100A
Installation: Series and Parallel Connection
Description
LSMO Battery Module be mainly used in electric mobility; Solar/wind energy storage system; UPS backup power; Telecommunication; Medical equipment; Lighting.




Performance Advantages
This battery module offers a longer cycle life than lead-acid batteries, reducing replacement and ownership costs. It is 40% lighter and serves as a direct “drop-in” replacement for lead-acid batteries. With twice the power output, even at high discharge rates, it maintains excellent energy capacity. Superior safety features include an internal battery management system that protects against overcharging, short circuits, and impacts. The lithium iron phosphate chemistry further eliminates explosion risks. Its modular design allows for flexible deployment, supporting up to two batteries in series and four in parallel.
