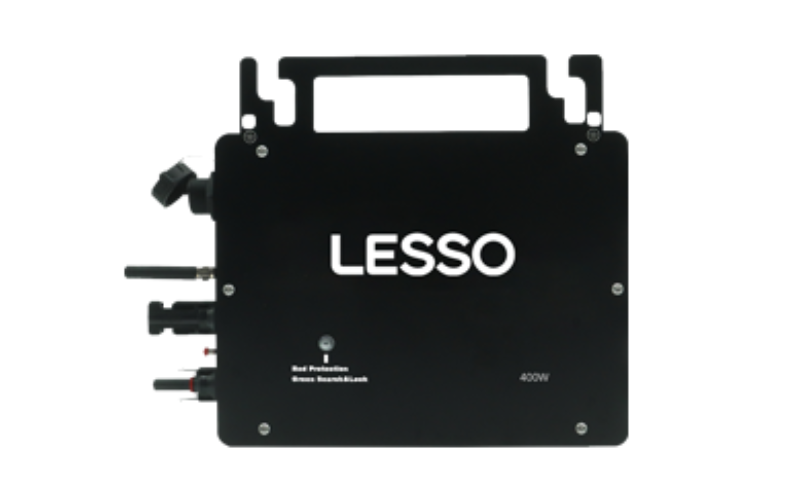

Micro Inverter LSMT 400TL

Model: LSMT300TL, LSMT350TL, LSMT400TL
Max. PV power: 300W~350W~400W
Max. input voltage: 50V
Max. input current: 12A~4A~16A
Operation voltage range: 20V – 50V
Nominal output voltage: 120VAC / 230VAC

Description

LESSO’s Micro inverter system is composed of a group of Micro inverters that convert direct current (DC) into alternating current (AC) and feeds it into the public grid.

储能逆变器系列 icon_2.MPPT效率sStatic MPPT efficiency is 99.80%
储能逆变器系列 icon_5.IP67sIP67 dust and water resistance
储能逆变器系列 icon_3.WIFIsWifi communication and cloud monitoring
储能逆变器系列 icon_6.定制输入电压sCustomizable various input (DV PV) voltage range
储能逆变器系列 icon_4浪涌保护(防雷)s6,000V Surge protection
储能逆变器系列 icon_7.多分支(单元)sUp to 9 units (230V) per branch

Superb Safety & Reliability

The LSMT400TL is a high-efficiency PV module connector, capable of connecting up to 1 PV module per unit, offering a maximum of 400W AC output power. Its single-phase output feature enhances the flexibility of three-phase PV systems. The product supports Wi-Fi communication and cloud monitoring, allowing users to check the system status at any time. Furthermore, each branch can connect up to 9 units (230V), and custom input voltage ranges (DC-PV) can be tailored to meet various usage requirements. The product also integrates an AC bus cable, providing plug-and-play convenience, reducing operational costs, and simplifying installation processes.
