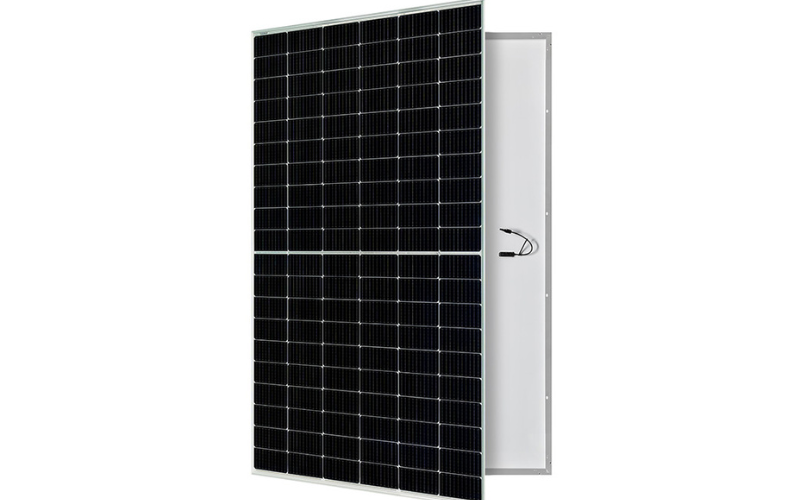

P-Series Solar Panel

MBB Technology Reducing String & Busbar Loss

Even Cloudy or Foggy Days Better Weak Illumination Response

Better Temperature Coefficient More Power Generation

Multiple Weather Resistance Tests Wider Applicability

High Efficiency PERC Better Resistance Against PID

Zero LID Increase Power Generation

Higher Power Output Lower BOS Cost

Double-sided Generation Powerfully Energy Boost

Description

P-type Modules
Module Type	Power Range	Maximum Efficiency	Dimension
182 P-type Monofacial / Bifacial Module	405W – 415W	21.25%	1722x1134x35/30mm
	450W – 460W	21.25%	1909x1134x35/30mm
	495W – 505W	21.27%	2094x1134x35/30mm
	545W – 555W	21.48%	2278x1134x35/30mm
210 P-type Monofacial Module	535W – 545W	21.34%	1960x1303x35/30mm
	595W – 605W	21.38%	2172x1303x35/30mm
	655W – 665W	21.41%	2384x1303x35/33mm
210 P-type Bifacial Module	530W – 540W	21.14%	1960x1303x35/30mm
	590W – 600W	21.20%	2172x1303x35/30mm
	650W – 660W	21.25%	2384x1303x35/33mm

100% Cells Sorting
Ensure Color and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.
100% Inspection
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination. Ensure “Zero” micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
100% Optional Testing
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.
