PPR-Aluminum Composite Pipe

Applications

● Cold or hot water supply

● Heating system including flooring heating, wall heating and radiant system

● Central air conditioning system

● Industrial liquids transportation

Description

  • Material: PP-R and Al
  • Size: full 20mm through 110mm availability
  • Pressure Rating: 1.6MPa, 2.0MPa, 2.5MPa
  • Standard: CJ/T 210-2005

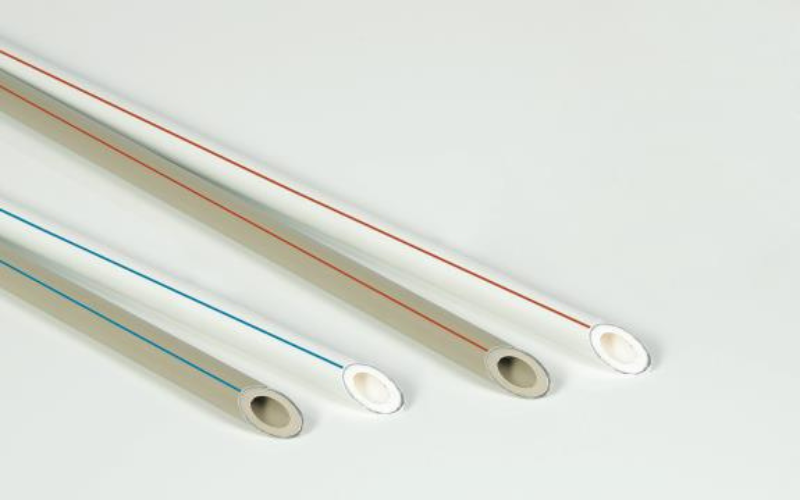

  • Colors: Light grey or white, pipe for cold water is marked with blue stripes, pipe for hot water is marked with red stripes.
  • Other colors are also available upon request. Form Supplied:
  • 4 meters straight length (all size).
  • 50 or 100 meters coil length (dn20~dn32).
  • Other forms are also available upon request

Advantages

▶ High Temperature Resistance: the maximum sustained working temperature is up to 70°C, the maximum transient temperature is up to 95°C.

▶ Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

▶ Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium.

▶ Corrosion Resistance: resist chemical matters and electron chemical corrosion.

▶ High Flow Capacity: smooth interior walls and low friction result in low flow resistance and high volume.

▶ Excellent Flexibility: can be supplied in coil.

▶ Low Installation Costs: light weight and ease of installation can reduce installation costs

▶ Longevity: more than 50 years under proper use

▶ Recycled and Environment-friendly

▶ Its linear expansion coefficient is low, which makes it not curve when transporting hot water for long time.
