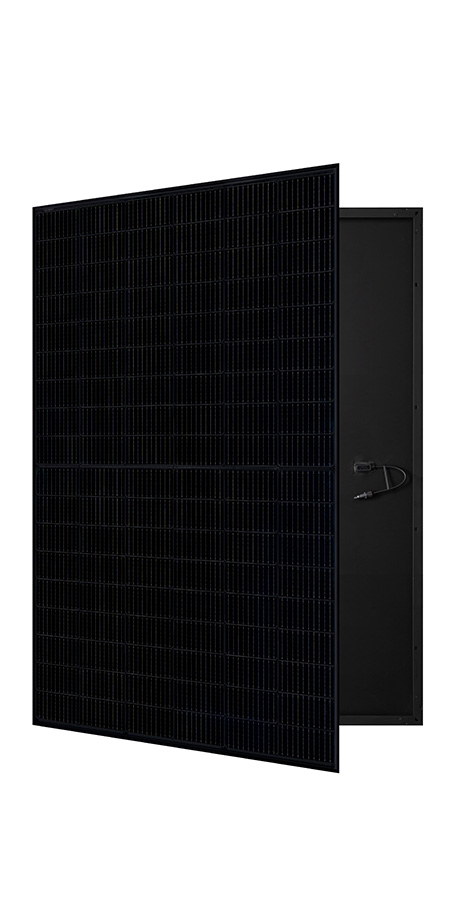

Pure Black Series Solar Panel

TOPCon Technology Higher Power Generation

Even Cloudy or Foggy Days Better Weak Illumination Response

Better Temperature Coefficient More Power Generation

Multiple Weather Resistance Tests Wider Applicability

Highly-resistant Black Crystal Material Modernity to Buildings

Zero LID Increase Power Generation

Higher Power Output Lower BOS Cost

Double-sided Generation Powerfully Energy Boost

Description

Pure Black Modules
Module Type	Power Range	Maximum Efficiency	Dimension
182 Pure Black N-type Monofacial Module	420W – 440W	22.53%	1722x1134x35/30mm
	470W – 490W	22.63%	1909x1134x35/30mm
	515W – 535W	22.53%	2094x1134x35/30mm
	565W – 585W	22.65%	2278x1134x35/30mm
	630W – 650W	23.25%	2465x1134x35mm
182 Pure Black N-type Bifacial Module	420W – 440W	22.53%	1722x1134x35/30mm
	465W – 485W	22.40%	1909x1134x35/30mm
	515W – 535W	22.53%	2094x1134x35/30mm
	565W – 585W	22.65%	2278x1134x35/30mm
182 Pure Black N-type Bifacial Single Glass Module	420W – 440W	22.53%	1722x1134x35/30mm
182 Pure Black P-type Monofacial Module	400W – 410W	21.00%	1722x1134x35/30mm
	445W – 455W	21.02%	1909x1134x35/30mm
	490W – 500W	21.06%	2094x1134x35/30mm
	535W – 545W	21.10%	2278x1134x35/30mm
210 Pure Black P-type Monofacial Module	640W – 650W	20.92%	2384x1303x35/33mm

100% Cells Sorting
Ensure Color and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.

100% Inspection
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.

100% EL Testing
Before and Following Lamination. Ensure “Zero” micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
100% Optional Testing
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.
